DAC1 3 Phase EMI Power Line Noise Filter Series–Rated Current:6A—20A

Short Description:

■ Three Phase AC 380/440VAC EMI Filters/Noise Filters
■ Rated Current:6A—20A
■ Double filter circuit design
■ In the 100Khz-30Mhz frequency band, it has very good common mode and differential mode interference suppression capabilities

■ We are a manufacturer, focusing on EMI filters for 14 years

 Support free samples

■ We have UL ROHS CE certificate


Product Detail

Product Tags

Product introduction

This series of products produced by our company are characterized by standard filter circuit design, small size, low price, and good performance in solving high frequency interference of 100Khz-30Mhz. They have been widely used in all kinds of three-phase system switching power supply, ups and other electronic power equipment, distribution cabinet, and other three-phase electronic power equipment and other complex electromagnetic interference environment equipment, so as to ensure the normal and safe operation of these equipment, effectively reduce the failure rate of equipment, reduce the interference of high-frequency signal to peripheral equipment and power grid, and provide your EMC service Radiation test escort.

Features of the DAC1 Filter

■ Single Phase AC 220V EMI Filters/Noise Filters

■ General purpose

■ Feature compact,Easy to install

Application cases of DAC1 Filter

Available for three phases,three lines series power supply equipments

Product information

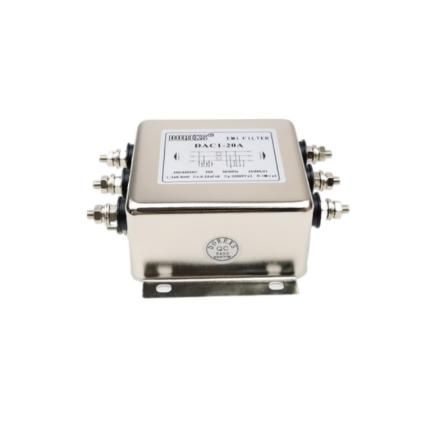

 xdfhd (1)

Rated voltage

380/440VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC (line/line)

2750VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Climatic category

25/085/21

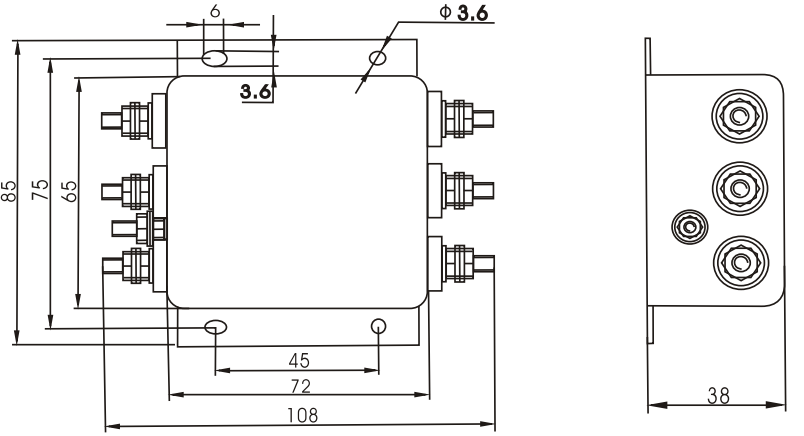

Outine Drawing and Dinemsions(mm)

DAA1  Series EMI power noise filters (3)

List of general products

Part No.

Rated Current

Leakage Current

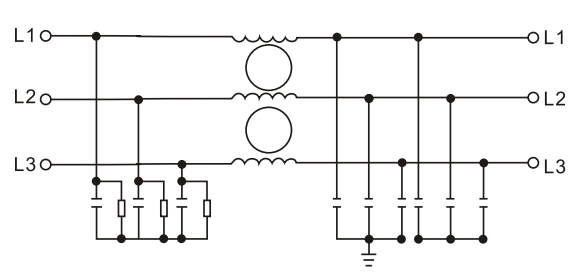

Electrical Schematics

 Safety           certification

     Remark

DAC1-6A

6A

<2.0mA







CEROHS







Parameters support

customization

DAC1-10A

10A

<2.0mA

DAC1-20A

20A

<3.0mA

This parameter is only a specification product, we support parameter customization

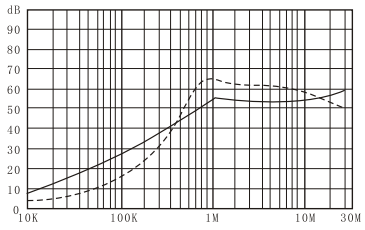

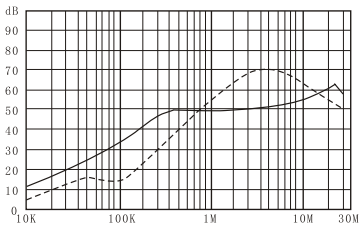

Insertion Loss

zsegf (13)
zsegf (15)

DAA1  Series EMI power noise filters (2)

 DAC1-6A

DAA1  Series EMI power noise filters (2)

DAC1-10A

DAA1  Series EMI power noise filters (2)

   DAC1-20A
