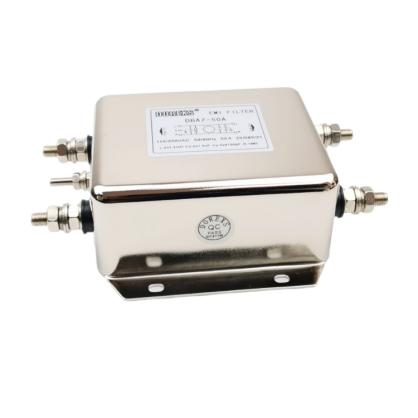

DBA7 Compact Multipurpose type EMI Filter——rated current 40A-100A

Short Description:

■ Single Phase AC 220V EMI Filters/Noise Filters
■ Rated Current:40A—100A
■ General purpose,This product is cheap
■ EMI Filter with a good suppression to common-mode and differential-mode interference


Product Detail

Product Tags

Product introduction

DBA7 series EMI power line noise filter is made of high-quality Mn Zn ferrite magnetic ring and capacitor, with first-class process quality and excellent performance. There are two connection modes: 1. Bolt connection; material parameters can be customized. It is an EMI filter with good common mode and differential mode interference suppression ability DBA7 series EMI power line noise filter is very popular in overseas market. Many customers all over the world contact us for bulk purchase. Our products are of high quality and affordable price. We are also a professional manufacturer in China. Our minimum order is not high. If you need samples, please contact us first. We will provide samples for you to check the quality.

Application cases

This series of products are widely used in various industrial lighting systems, single-phase 220VAC power drive systems, disinfection and purification equipment, laser cutting equipment, industrial automation robots, large-scale medical equipment and other automated electrical equipment.

Rated voltage

115/250VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC (line/line)

2150VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Climatic category

25/085/21

List of general products

Part No.

Rated Current

Leakage Current

Terminal

Electrical Schematics

Safety        certification

     Remark

Input

Output

DBA7-40A

40A

<2.0mA

Bolt

Bolt







CUL, CE, CQC, ROHS







Parameters support

customization

DBA7-50A

50A

<2.0mA

Bolt

Bolt

DBA7-60A

60A

<2.0mA

Bolt

Bolt

DBA7-80A

80A

<2.0mA

Bolt

Bolt

DBA7-100A

100A

<2.0mA

Bolt

Bolt

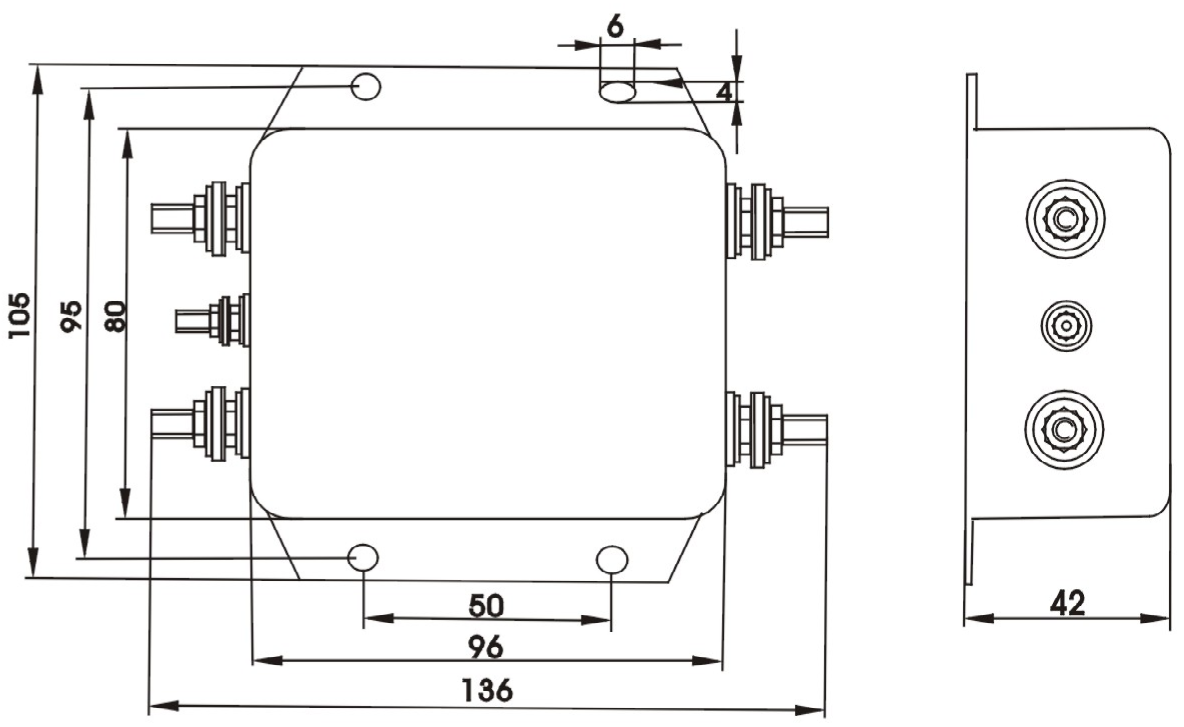

Outine Drawing and Dinemsions(mm)

DAA1  Series EMI power noise filters (3)

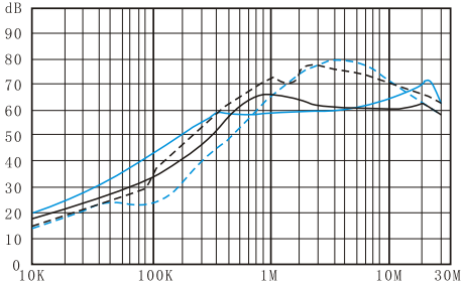

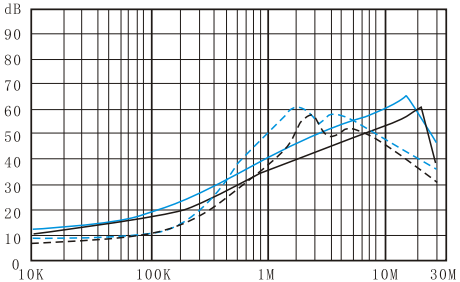

Insertion Loss

DAA1  Series EMI power noise filters (2)

DBA7-80A / DBA7-100A

DAA1  Series EMI power noise filters (2)

DBA7-40A / DBA7-60A
