DBI5 Single-Phase EMI Filter Of Fuse And Rocker Switch And Socket Type——Rated Current 1A-10A

Short Description:

■ Single Phase AC 220V EMI Filters/Noise Filters

■ Rated Current:1A—10A

■ pin interface design

■ EMI Filter with a good suppression to common-mode and differential-mode interference

■ We are a manufacturer, focusing on EMI filters for 14 years

■ Support free samples

■ We have UL ROHS CE certificate


Product Detail

Product Tags

Application cases of IEC socket filter dAI2 series products

This series of products produced by our company are characterized by Standard IEC socket input interface, modular design of  one fuses and boat appearance switch, small volume and low price, and have good performance in solving high frequency interference of 1mhz-30mhz. They have been widely used in test equipment, medical equipment, animation entertainment game machine, fire protection system, urban security monitoring system and other complex electromagnetic interference environment equipment, This product is simple in design, but has better performance, convenient connection, convenient use and low price. DBI5 Series EMI power line noise filter is very popular overseas market, and many customers all over the world contact us for bulk purchase. Our products are of high quality and affordable. We are also a professional manufacturer in China. Our MOQ is not high. If you need samples, you can contact us first. We will provide samples for you to check the quality.

Features

■ Single-Phase EMI Filter Of Fuse And Rocker Switch And Socket Type

■ pin interface design

■ High ratio of performance to cost moke

■ EMI Filter with a good suppression to common-mode and differential-mode interference

Application cases

zxdg (1)

Game machine

zsegf (7)

Medical equipment

zxdg (5)

Urban security monitoring system

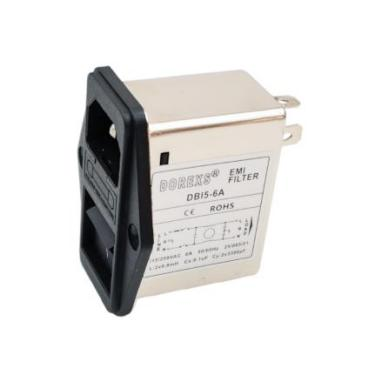

Product information

 rgdds (2)

Rated voltage

1115/250VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC (line/line)

2150VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Climatic category

25/085/21

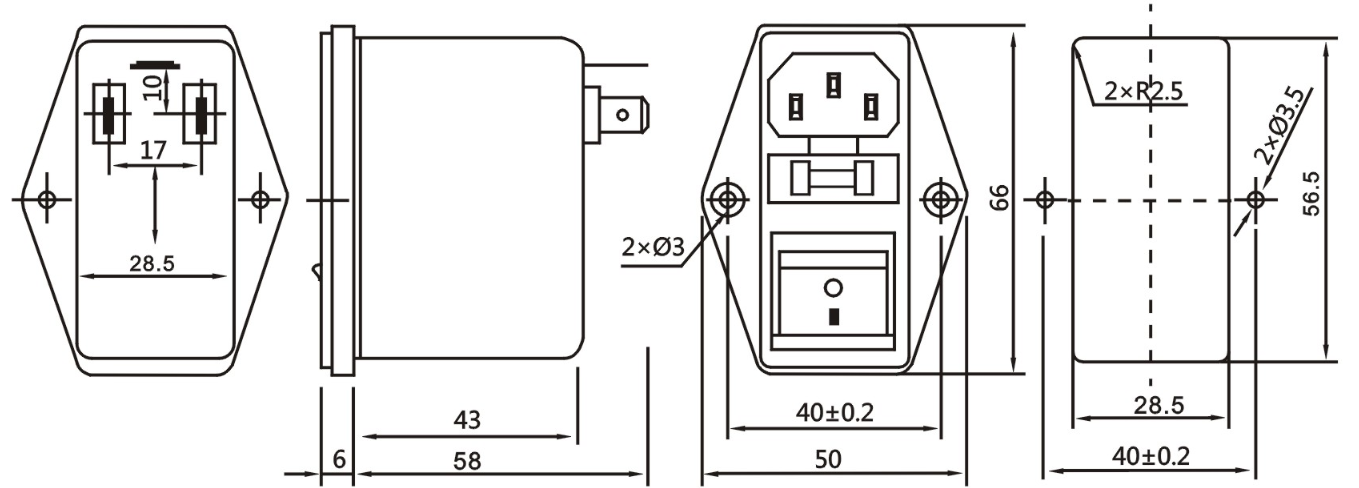

Outine Drawing and Dinemsions(mm)

DBI5EM ( (12)

List of general products

Part No.

Rated Current

Leakage Current

Electrical Schematics

Safety  certification

DBI5-1A

1A

<0.5mA

DBI5EM ( (13)





CUL,CE ,CQC,ROHS



DBI5-3A

3A

<0.5mA

DBI5-6A

6A

<0.5mA

DBI5-10A

10A

<0.5mA

This parameter is only a specification product, we support parameter customization

Insertion Loss

zsegf (13)
zsegf (15)

DBI5EM ( (12)

DBI5-1A

DBI5EM ( (12)

DBI5-6A

DBI5EM ( (12)

DBI5-3A

DBI5EM ( (12)

DBI5-10A
