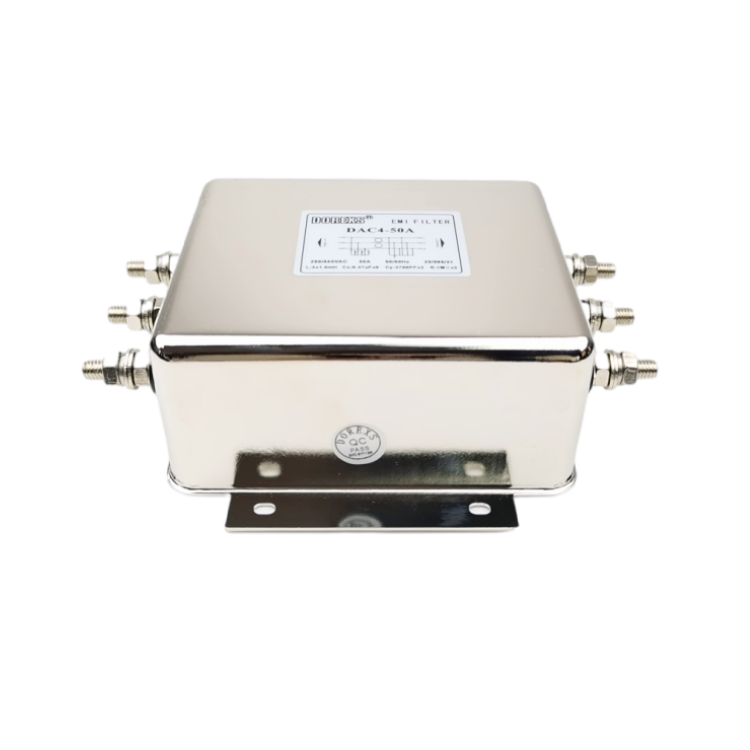

DAC4 3 Phase EMI power line noise filter Series

Short Description:

■ Three Phase AC 380/440VAC EMI Filters/Noise Filters
■ Rated Current:40A—100A
■ Double filter circuit design
■ In the 100Khz-30Mhz frequency band, it has very good common mode and differential mode interference suppression capabilities


Product Detail

Product Tags

Application cases of three-phase power filter series products

This series of products produced by our company are characterized by standard filter circuit design, small size, low price, and good performance in solving high frequency interference of 100Khz-30Mhz. They have been widely used in all kinds of three-phase system switching power supply, ups and other electronic power equipment, distribution cabinet, and other three-phase electronic power equipment and other complex electromagnetic interference environment equipment, so as to ensure the normal and safe operation of these equipment, effectively reduce the failure rate of equipment, reduce the interference of high-frequency signal to peripheral equipment and power grid, and provide your EMC service Radiation test escort.

Application cases

Rated voltage

115/250VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC (line/line)

2150VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Climatic category

25/085/21

List of general products

Part No.

Rated Current

Leakage Current

Electrical Schematics

 Safety           certification

     Remark

DAC4-40A

30A

<2.0mA







CEROHS







Parameters support

customization

DAC4-50A

35A

<2.0mA

DAC4-60A

60A

<2.0mA

DAC4-80A

80A

<2.0mA

DAC4-100A

100A

<5.0mA

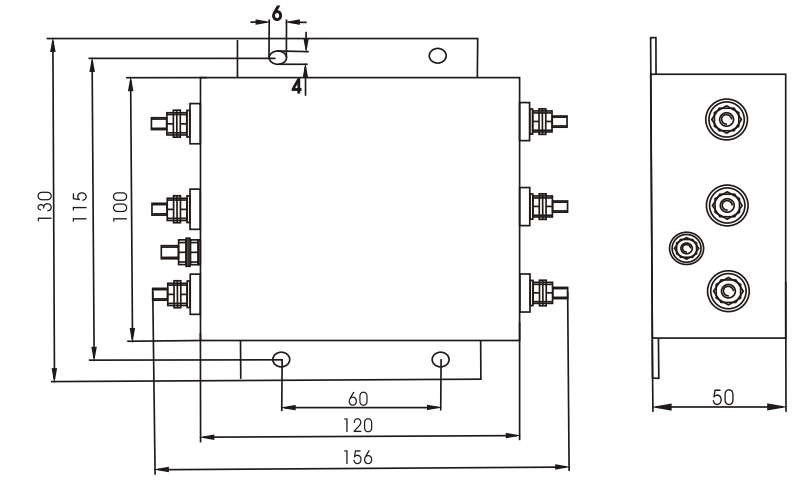

Outine Drawing and Dinemsions(mm)

DAA1  Series EMI power noise filters (3)

Insertion Loss

DAA1  Series EMI power noise filters (2)

DAC4-40A/50A

DAA1  Series EMI power noise filters (2)

DAC4-60A

DAA1  Series EMI power noise filters (2)

DAC4-80A/100A
