DBA4 Compact Multipurpose Type EMI Filter——Rated Current 10A-30A

Short Description:

■ Single Phase AC 220V EMI Filters/Noise Filters
■ Rated Current:20A—30A
■ Can be customize according to customer requirements
■ EMI Filter with a good suppression to common-mode and differential-mode interference

■ We are a manufacturer, focusing on EMI filters for 14 years

 Support free samples

■ We have UL ROHS CE certificate


Product Detail

Product Tags

Product introduction

DBA4 series products of our company are characterized by small volume and low price. There are three connection modes for you: brass bolt / standard 6.3 * 0.8 quick socket, which are convenient for use and quick for installation. It has a good performance to solve the high frequency interference of 1mhz-30mhz.

Features of the DBA4 Filter

■ Single Phase AC EMI power Filters

■ General purpose EMC Filter

■ Filter with a good suppression to common-mode and differential-mode interference

Application scenarios of DBA4 Filter

They have been widely used in various electrical appliances, testing equipment, medical equipment, fire protection system, laser cutting equipment, urban security monitoring system, stage lighting equipment, power grid control system, LED lighting drive system, industrial automation robot and other complex electromagnetic interference environment equipment, to ensure the normal and safe operation of these equipment, effectively reduce equipment failure It can reduce the interference of high frequency signal to peripheral equipment and power grid, and protect your EMC conducted radiation test.

zsegf (5)

LED lighting drive system

zsdg (5)

laser cutting equipment

zsegf (7)

Medical equipment

Product information

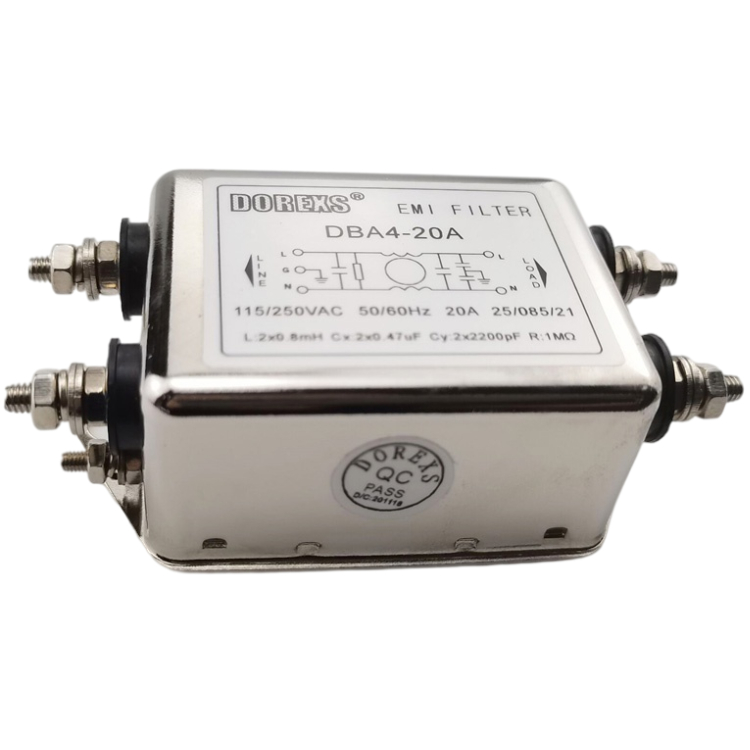

 zxgf

Rated voltage

1115/250VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC (line/line)

2150VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Climatic category

25/085/21

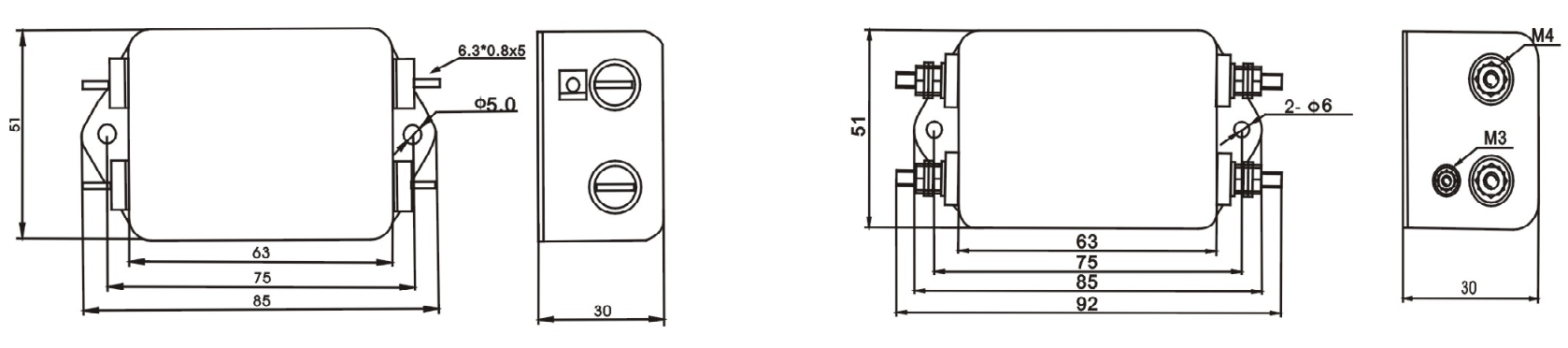

Outine Drawing and Dinemsions(mm)

DAA1  Series EMI power noise filters (3)

List of general products

Part No.

Rated Current

Leakage Current

Dimension

Terminal

Electrical Schematics

Safety        certification

Input

Output

DBA4-10A

10A

<0.5mA

A4

Bolt/Terminal

Bolt/Terminal







CUL, CE, CQC, ROHS

DBA4-20A

20A

<0.5mA

A4

Bolt/Terminal

Bolt/Terminal

This parameter is only a specification product, we support parameter customization

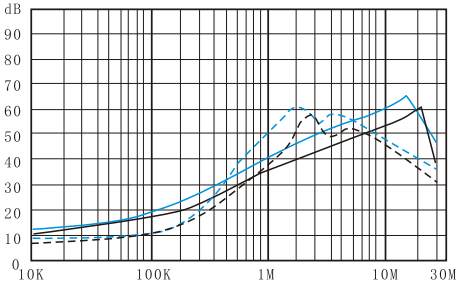

Insertion Loss

zsegf (13)
zsegf (15)

DAA1  Series EMI power noise filters (2)

 DBA4-20A / DBA4-30A
