DAA1 Series EMI power noise filters

Short Description:

■  Single Phase AC 220V EMI Filters/Noise Filters

■   Rated Current:1A—10A

■   General purposeThis product is cheap

■   EMI Filter with a good suppression to common-mode and differential-mode   interference


Product Detail

Product Tags

Product introduction

DAA1  Series EMI power line noise filter is made of high-quality manganese-zinc ferrite magnetic rings and capacitors, and has first-class process quality and good performance. With wire connection, wire length and material parameters can be customized. And it is an emi filter with good suppression of common mode and differential mode interference. This product is simple in design, but has better performance, convenient connection, convenient use and low price. DAA1  Series EMI power line noise filter is very popular overseas market, and many customers all over the world contact us for bulk purchase. Our products are of high quality and affordable. We are also a professional manufacturer in China. Our MOQ is not high. If you need samples, you can contact us first. We will provide samples for you to check the quality.

Application cases

This series EMI power line noise filters of products are widely used in various disinfection and purification equipment, laser cutting equipment, automatic robot and other small industrial automation equipment.

Rated voltage

115/250VAC

Line Frequency

50/60Hz

Test Voltage

1500VDC (line/line)

2150VAC (line/ground)

Insulation Resistance

>50MΩ@500VDC

Climatic category

25/085/21

List of general products

Part No.

Rated Current

Leakage Current

Dimension

Terminal

Electrical Schematics

Safety  certification

     Remark

Input

Output

DAA1-1A

1A

<0.5mA

A1

 DAA1  Series EMI power noise filters (5)

 CULCE

CQC,ROHS

 Parameters support

customization

DAA1-3A

3A

<0.5mA

A1

DAA1-6A

6A

<0.5mA

A1

DAA1-10A

10A

<0.5mA

A1

Outine Drawing and Dinemsions(mm)

DAA1  Series EMI power noise filters (3)

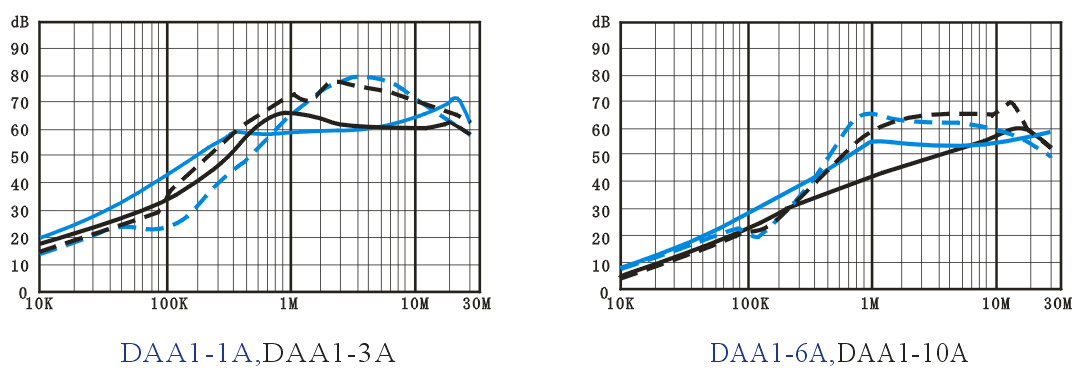

Insertion Loss

DAA1  Series EMI power noise filters (2)
