DBA3 Compact Multipurpose Type EMI Filter——Rated Current 1A-20A

Short Description:

■ Single Phase AC 220V EMI Filters/Noise Filters
■ Rated Current：1A—20A
■ General purpose，This product is cheap
■ EMI Filter with a good suppression to common-mode and differential-mode interference

■ We are a manufacturer, focusing on EMI filters for 14 years

■ Support free samples

■ We have UL ROHS CE certificate

Get free samples

Download to pdf

Product Detail

Product Tags

Product introduction

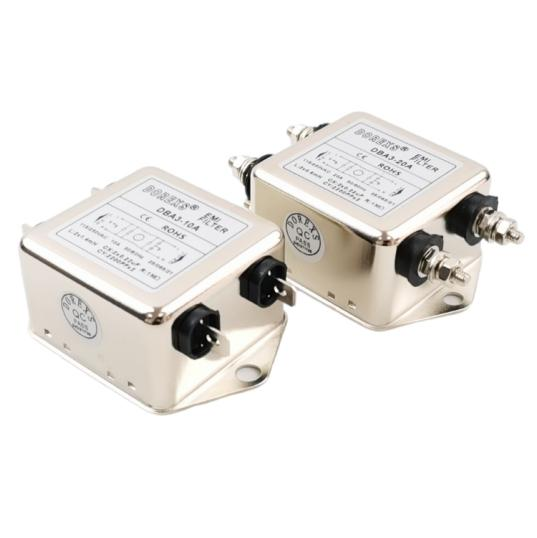

DBA3 series EMI power line noise filter is made of high-quality Mn Zn ferrite magnetic ring and capacitor, with first-class process quality and excellent performance. There are two connection modes: 1. Bolt connection; 2. Standard 6.3 * 0.8mm 250 type plug-in interface; material parameters can be customized. It is an EMI filter with good common mode and differential mode interference suppression ability DBA3 series EMI power line noise filter is very popular in overseas market. Many customers all over the world contact us for bulk purchase. Our products are of high quality and affordable price. We are also a professional manufacturer in China. Our minimum order is not high. If you need samples, please contact us first. We will provide samples for you to check the quality.

Features

■ Single Phase AC EMI power Filters

■ General purpose

■ Filter with a good suppression to common-mode and differential-mode interference

Application cases

This series of products are widely used in various LED lighting systems, stage lighting systems, disinfection and purification equipment, laser cutting equipment, industrial automation robot, medical equipment, fitness equipment and other small industrial automation equipment.

LED lighting drive system

fitness equipment

Medical equipment

Product information

	Rated voltage	1115/250VAC
	Line Frequency	50/60Hz
	Test Voltage	1500VDC (line/line)
		2150VAC (line/ground)
	Insulation Resistance	>50MΩ@500VDC
	Climatic category	25/085/21

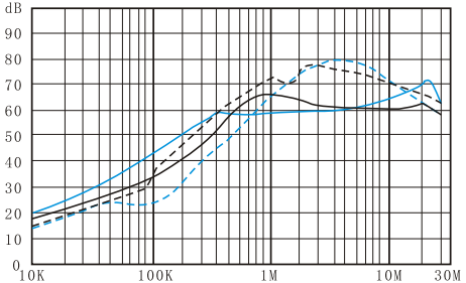

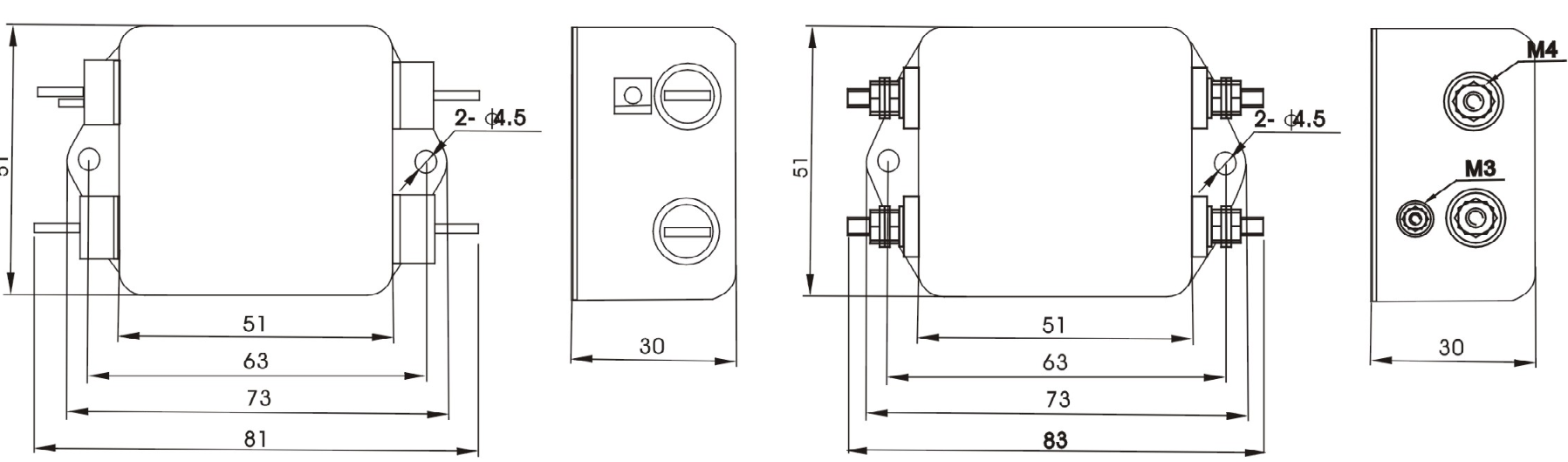

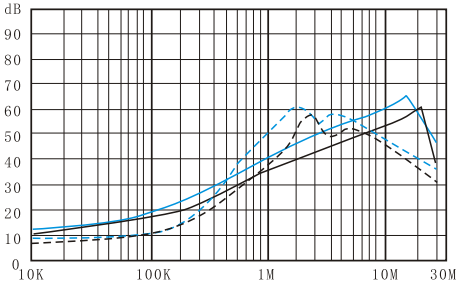

Outine Drawing and Dinemsions(mm)

List of general products

Part No.	Rated Current	Leakage Current	Dimension	Terminal		Electrical Schematics	Safety certification
Part No.	Rated Current	Leakage Current	Dimension	Input	Output	Electrical Schematics	Safety certification
DBA3-1A	1A	<0.5mA	A1	Terminal	Terminal		CUL, CE, CQC, ROHS
DBA3-3A	3A	<0.5mA	A1	Terminal	Terminal
DBA3-6A	6A	<0.5mA	A1	Terminal	Terminal
DBA3-10A	10A	<0.5mA	A1	Bolt/Terminal	Bolt/Terminal
DBA3-20A	1A	<0.5mA	A1	Bolt/Terminal	Bolt/Terminal
